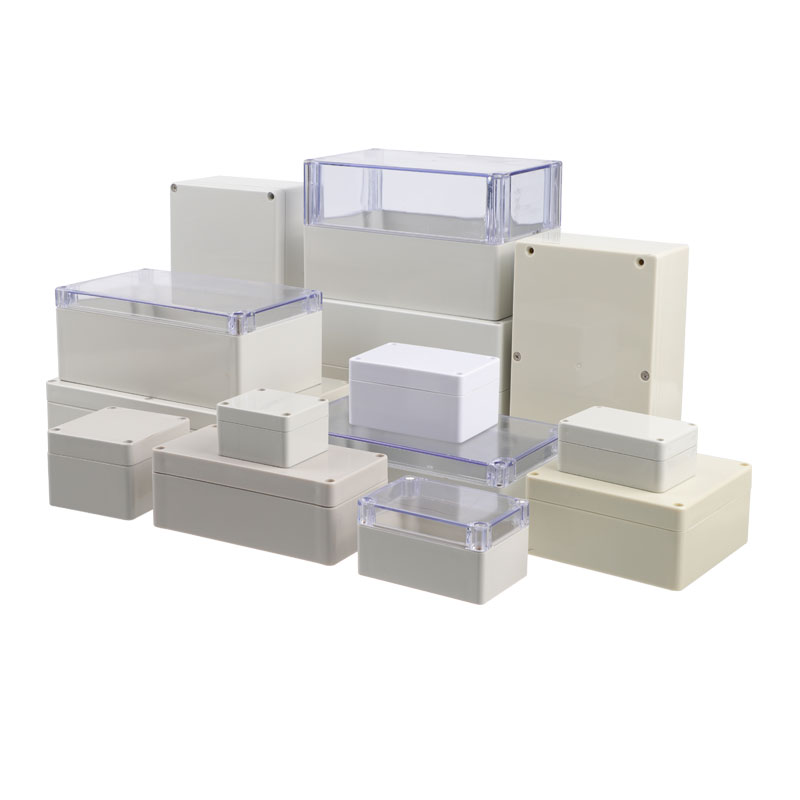

Stainless steel screw waterproof enclosure,Type 4X, 6P Polycarbonate ,General Purpose ABS Enclosures
water-tight electronic enclosures are built tough with thick walls and environmental protection
ideally suited for internal mounting PC boards, inner panels, or DIN rail components.
The water-tight gasket protects against ingress of liquids. Availble in over 30 sizes and 4 configurations
| Code |
Dimensions (L x W x H) (mm ) |
Remark | Code |
Dimensions (L x W x H) (mm ) |
Remark | Code |
Dimensions (L x W x H) (mm ) |
Remark | ||
| WPA001 | 64X57X35 | WPA020 | 160X80X85 | WPA232 | 240X160X65 | |||||
| WPA002 | 83X81X56 | WPA128 | 160X160X90 | WPA234 | 240X160X90 | |||||
| WPA003 | 100X68X50 | WPA131 | 160X160X120 | WPA236 | 240X160X120 | |||||
| WPA004 | 84X58X34 |
  |
WPA022 | 160X120X63 | WPA250 | 265X185X60 | ||||
| WPA100 | 115X65X40 | WPA024 | 165X125X75 | WPA253 | 265X185X80 | |||||
| WPA101 | 115X89X55 | WPA026 | 171X121X55 | WPA256 | 265X185X95 | |||||
| WPA007 | 120X80X60 | WPA031 | 180X109X66 | WPA258 | 265X185X125 | |||||
| WPA119 | 120X120X60 | WPA034 | 180X125X66 | WPA265 | 290X210X60 | |||||
| WPA123 | 120X120X90 | WPA036 | 182X180X109 | WPA267 | 290X210X80 | |||||
| WPA012 | 122X120X55 | WPA038 | 194X80X56 | WPA050 | 318X238X101 | |||||
| WPA104 | 122X120X60 | WPA041 | 194X80X60 | WPA320 | 320X240X110 | |||||
| WPA014 | 125X90X40 | WPA210 | 200X120X55 | WPA324 | 320X240X140 | |||||
| WPA118 | 130X94X55 | WPA212 | 200X120X75 | WPA333 | 355X185X77 | |||||
| WPA103 | 140X82X45 | WPA229 | 200X120X90 | WPA334 | 355X185X97 | |||||
| WPA103B | 140X82X45 | WPA215 | 200X120X115 | WPA335 | 355X185X113 | |||||
| WPA109 | 158X90X39 | WPA220 | 226X146X55 | WPA336 | 355X185X133 | |||||
| WPA110 | 158X90X47 | WPA221 | 226X146X75 | WPA342 | 380X260X105 | |||||
| WPA111 | 158X90X60 | WPA224 | 230X150X60 | WPA343 | 380X260X120 | |||||
| WPA106 | 160X45X56 | WPA227 | 230X150X84 | WPA345 | 380X260X140 | |||||
| WPA017 | 161X81X56 | WPA230 | 230X150X110 | WPA346 | 380X260X160 |
