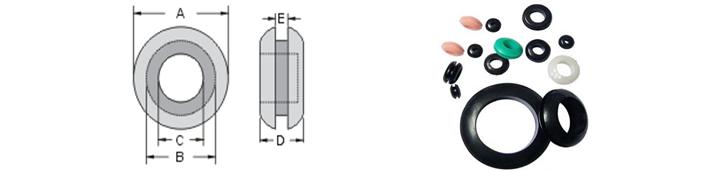

| Item No. | (A)mm | (B)mm | (C)mm | (D)mm | (E)mm |
| HX-03 | 8.3 | 5.5 - 6.0 | Ø3 | 4.2 | 1.6 - 2.00 |
| HX-A03(B) | 8 | 5.4 | Ø3 | 4.5 | 2 |
| HX-04 | 10.8 | 5.8 - 6.4 | Ø4 | 5.5 | 1.6 - 2.00 |
| HX-05 | 11 | 6.8 - 7.4 | Ø5 | 5 | 1.6 - 2.00 |
| HX-06 | 12 | 7.7 - 8.1 | Ø6 | 5.7 | 1.6 - 2.00 |
| HX-A06(B) | 13.5 | 9.3 | Ø6 | 6.5 | 2 |
| HX-07 | 13 | 8.2 - 9.1 | Ø7 | 5.7 | 1.6 - 2.00 |
| HX-08 | 15 | 9.7 - 10.2 | Ø8 | 6.3 | 1.6 - 2.00 |
| HX-A09(B) | 16 | 12 | Ø9 | 5.5 | 2.3 |
| HX-10 | 16.8 | 11.5 - 12.1 | Ø10 | 7.5 | 1.6 - 2.00 |
| HX-12 | 21.5 | 14.5 - 15.2 | Ø12 | 9.5 | 2.2 - 2.70 |
| HX-14 | 22 | 16.9 - 17.5 | Ø14 | 8.8 | 2.2 - 2.70 |
| HX-16 | 25.3 | 19.5 - 20.3 | Ø16 | 9 | 2.2 - 2.70 |
| HX-A16(B) | 28 | 23 | Ø16 | 9 | 1.6 |
| HX-18 | 29.5 | 21.6 - 22.3 | Ø18 | 9 | 2.2 - 2.70 |
| HX-20 | 30.5 | 23.7 - 24.1 | Ø20 | 10 | 2.2 - 2.70 |
| HX-22 | 36 | 26 - 28 | Ø22 | 11 | 1.8 - 3.10 |
| HX-25 | 39 | 28 - 33 | Ø25 | 10 | 1.8 - 3.10 |
| HX-30 | 45 | 35 - 38 | Ø30 | 11 | 2.1 - 3.20 |
| HX-35 | 51 | 37 - 42 | Ø35 | 11.2 | 2.1 - 3.20 |
| HX-40 | 55 | 40 - 45 | Ø40 | 11.5 | 2.1 - 3.20 |
