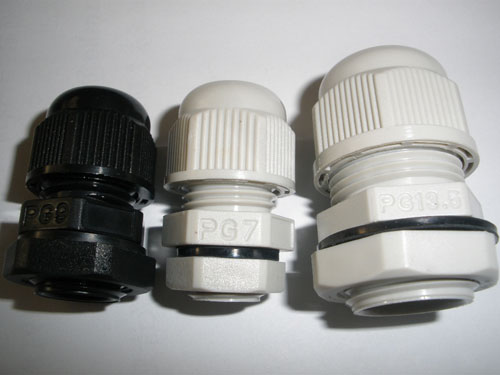

China plastic cable gland,plastic cable gland Manufacturer
By Series
(31)
Plastic Enclosure
(767)
Other
(11)
Specifications (Detailed Product Description ) :
Material : Polyamide (Nylon 66)
Gasket:NBR (nitrile rubber buna) Polyamide 6.6 with Nitrile Rubber Seal
Protection level: IP68 / 5 bar pressure
Temperature stability: -40°C to 100°C (Short period at 120°C)
Available colour : white , grey ,black . color can be customized when the quantity reaches to 5000pcs for one item.

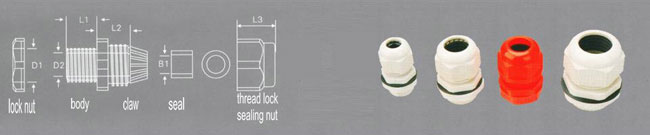

Cable Gland Selection Table
| AG(PG) | AG(Metric) | NPT | Cable Diameter (mm) | Overall length(mm) (L1+L2+L3) | B1 | D1 | D2 | Pack Quantity (pcs) | Available Color |
| PG7 | M12x1.5 | 3.5-6 | 35.4 | 6.4 | 10.9 | 8.1 | 100 | white,black ,gray | |
| PG9 | M16x1.5 | G1/2'' | 4-8 | 42.9 | 8.6 | 15.3 | 12.2 | 100 | white,black ,gray |
| PG11 | M18x1.5 | 5-10 | 43.6 | 10.7 | 17.9 | 14.6 | 100 | white,black ,gray | |
| PG13.5 | M20x1.5 | G1/2'' | 6-12 | 45.7 | 13.3 | 20.2 | 16.2 | 100 | white,black ,gray |
| PG16 | M22x1.5 | 10-14 | 50.2 | 14.3 | 21.3 | 18.3 | 50 | white,black ,gray | |
| PG19 | M24x1.5 | 12-15 | 51.8 | 15.5 | 24.7 | 20.5 | 50 | white,black ,gray | |
| PG21 | M27x1.5 | G3/4'' | 13-18 | 53.4 | 16.7 | 26.9 | 21.8 | 50 | white,black ,gray |
| PG25 | M30x1.5 | G1'' | 15-22 | 55.2 | 18.2 | 29.8 | 25 | 50 | white,black ,gray |
| PG27 | M32x1.5 | 17-23 | 55.2 | 19.2 | 29.8 | 25 | 25 | white,black ,gray | |
| PG29 | M36x1.5 | G1 1/4'' | 18-25 | 59.8 | 24.8 | 35.1 | 29.8 | 25 | white,black ,gray |
| PG36 | M46x1.5 | G1 1/2'' | 22-23 | 63.8 | 30.7 | 44.7 | 37.1 | 25 | white,black ,gray |
| PG42 | M54x1.5 | 30-38 | 73.7 | 35.6 | 50.2 | 43.1 | 20 | white,black ,gray | |
| PG48 | M60x1.5 | 34-44 | 80.5 | 41.4 | 56 | 48.1 | 5 | white,black ,gray | |
| PG63 | G2'' | 42-54 | 102.5 | 45.3 | 62 | 56.2 | 5 | white,black ,gray |
