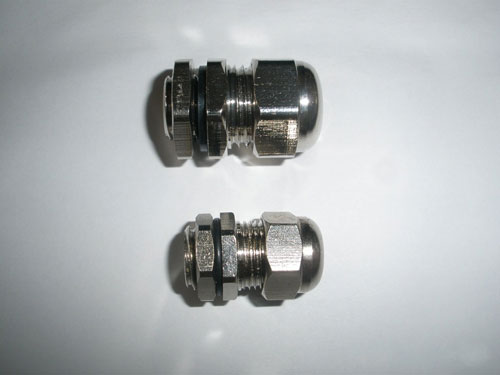

Specifications (Detailed Product Description ) :
Material : nickel plated brass for body with lock nut
Insert : Polyamid 6
Gasket:NBR (nitrile rubber buna)
Size in Metric: M12-M100
Protection level: IP68 / 5 bar pressure
Temperature stability: -40°C to 100°C (Short period at 120°C)
Function : The metal cable gland is your guarantee of superior grip, strain relief, sealing and protection of your electrical installations against the ingress of dust.

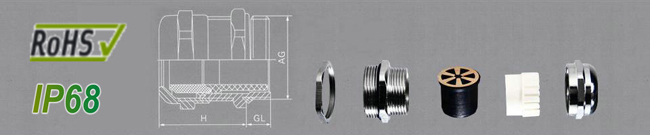

Cable Gland Selection Table
| Thread spec.(metric) | Specification of thread | Specification of thread | Specification of thread | Cable Range | Thread lenght | Joint length | Wrench diameter |
| M12×1.5 | PG7 | NPT1/4 | G1/4 | 6.5-3 | 7mm | 19mm | 14mm |
| M14×1.5 | 8-4 | 7mm | 19mm | 18mm | |||
| M16×1.5 | PG9 | NPT3/8 | G3/8 | 8-4 | 8mm | 20mm | 18mm |
| M18×1.5 | PG11 | 10-5 | 8mm | 21mm | 20mm | ||
| M20×1.5 | PG13.5 | NPT1/2 | G1/2 | 12-6 | 8mm | 22mm | 22mm |
| M22×1.5 | PG16 | 12-6 | 8mm | 23mm | 24mm | ||
| M24×1.5 | 14-10 | 9mm | 25mm | 24/27mm | |||
| M25×1.5 | PG19 | 14-10 | 9mm | 25mm | 24/27mm | ||
| M25×1.5 | 18-13 | 9mm | 27mm | 30/27mm | |||
| M27×1.5(2) | 18-13 | 9mm | 27mm | 30mm | |||
| M28×1.5(2) | PG21 | NPT3/4 | G3/4 | 18-13 | 9mm | 27mm | 30mm |
| M30×1.5(2) | 18-13 | 9mm | 29mm | 30/32mm | |||
| M32×1.5(2) | PG25 | 22-15 | 10mm | 29mm | 35mm | ||
| M33×1.5(2) | 22-15 | 10mm | 29mm | 35mm | |||
| M36×1.5(2) | 25-18 | 10mm | 31mm | 40mm | |||
| M37×1.5(2) | PG29 | NPT1 | G1 | 25-18 | 10mm | 31mm | 40mm |
| M40×1.5(2) | 25-18 | 11mm | 31mm | 40/45mm | |||
| M40×1.5(2) | 30-22 | 11mm | 35mm | 45mm | |||
| M42×1.5(2) | 30-22 | 11mm | 35mm | 45mm | |||
| M47×1.5(2) | PG36 | NPT11/4 | G11/4 | 33-22 | 11mm | 37mm | 50mm |
| M48×1.5(2) | 33-25 | 11mm | 37mm | 50mm | |||
| M50×1.5(2) | 38-25 | 12mm | 37mm | 57/55mm | |||
| M54×1.5(2) | PG42 | NPT11/2 | G11/2 | 38-32 | 12mm | 38mm | 57mm |
| M56×1.5(2) | 38-32 | 12mm | 38mm | 57/59mm | |||
| M60×1.5(2) | PG48 | NPT2 | G2 | 44-37 | 13mm | 38mm | 65mm |
| M63×1.5(2) | 44-37 | 13mm | 38mm | 65mm | |||
| M64×1.5(2) | 44-37 | 13mm | 38mm | 65/68mm | |||
| M72×2 | PG63 | NPT21/2 | G21/2 | 52-42 | 15mm | 42mm | 77mm |
| M75×2 | 52-42 | 15mm | 42mm | 77mm | |||
| M80×2 | 62-55 | 15mm | 45mm | 90mm | |||
| M88×2 | NPT3 | G3 | 70-65 | 15mm | 45mm | 94mm | |
| M100×2 | 84-78 | 15mm | 45mm | 110mm |
