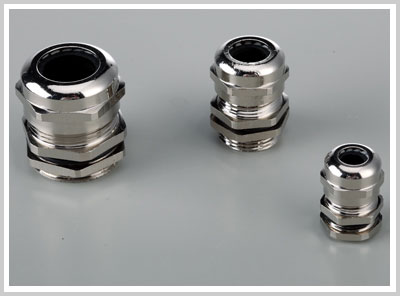

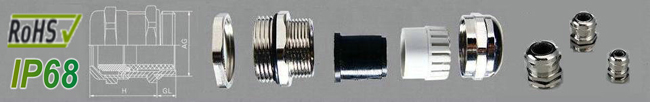

IP68 Metal Cable Glands | G , NPT type
Specifications (Detailed Product Description ) :
Material: nickel plated brass for body with lock nut
Insert : Polyamid 6.6
Gasket:NBR (nitrile rubber buna)
Size:G1/4 – G3 , NPT1/4 – NPT3
Protection level: IP68 / 5 bar pressure
Temperature stability: -40°C to 100°C (Short period at 120°C)
Function: The metal cable gland is your guarantee of superior grip, strain relief, sealing and protection of your electrical installations against the ingress of dust, moisture and submersion.
Cable Gland Selection Table
| Thread spec. | Cable Range | Outer diameter of thread | Within each of 25mm (Cotains the numbar of teeth) | Thread length | Joint length | Spanner diameter |
| G1/4 | 6.5-3 | 13.1 | 19teeth | 7mm | 19mm | 14mm |
| G3/8 | 8-4 | 16.6 | 19teeth | 8mm | 19mm | 18mm |
| G1/2 | 12-6 | 20.9 | 14teeth | 8mm | 22mm | 22mm |
| G3/4 | 18-13 | 26.4 | 14teeth | 9mm | 25mm | 30mm |
| G1 | 25-18 | 33.2 | 11teeth | 11mm | 29mm | 40mm |
| G11/4 | 33-22 | 41.9 | 11teeth | 13mm | 35mm | 50mm |
| G11/2 | 38-32 | 47.8 | 11teeth | 14mm | 37mm | 57mm |
| G2 | 44-37 | 59.6 | 11teeth | 14mm | 38mm | 65mm |
| G21/2 | 52-42 | 75.1 | 11teeth | 15mm | 38mm | 77mm |
| G3 | 70-65 | 87.8 | 11teeth | 15mm | 48mm | 94mm |
| NPT1/4 | 6.5-3 | 13.6 | 18teeth | 7mm | 19mm | 14mm |
| NPT3/8 | 8-4 | 17 | 18teeth | 8mm | 19mm | 18mm |
| NPT1/2 | 12-6 | 21.2 | 14teeth | 8mm | 22mm | 22mm |
| NPT3/4 | 18-13 | 26.5 | 14teeth | 9mm | 25mm | 30mm |
| NPT1 | 25-18 | 33.2 | 11.5teeth | 11mm | 29mm | 40mm |
| NPT11/4 | 33-22 | 41.9 | 11.5teeth | 13mm | 35mm | 50mm |
| NPT11/2 | 38-32 | 48 | 11.5teeth | 14mm | 37mm | 57mm |
| NPT2 | 44-37 | 60 | 11.5teeth | 14mm | 38mm | 65mm |
| NPT21/2 | 52-42 | 72.6 | 8teeth | 15mm | 38mm | 77mm |
| NPT3 | 70-65 | 88.6 | 8teeth | 15mm | 45mm | 94mm |
